Whiteline 11+ Subaru STi Front Race anti-dive caster kit

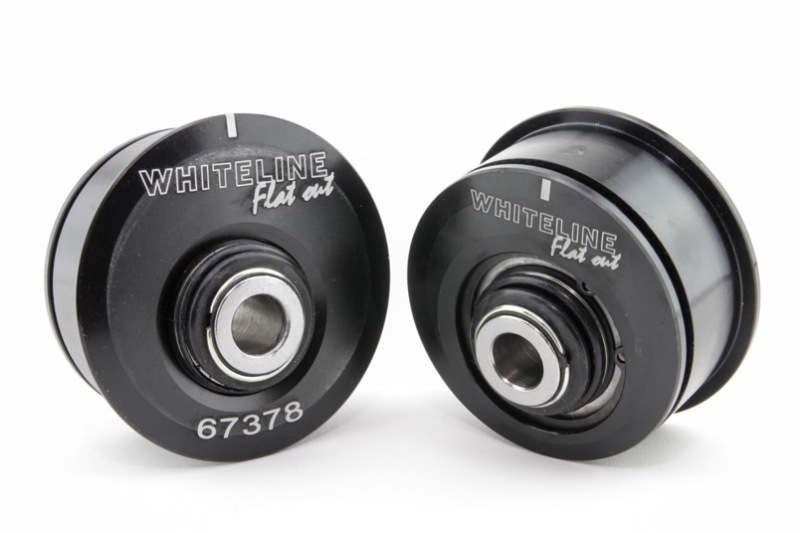

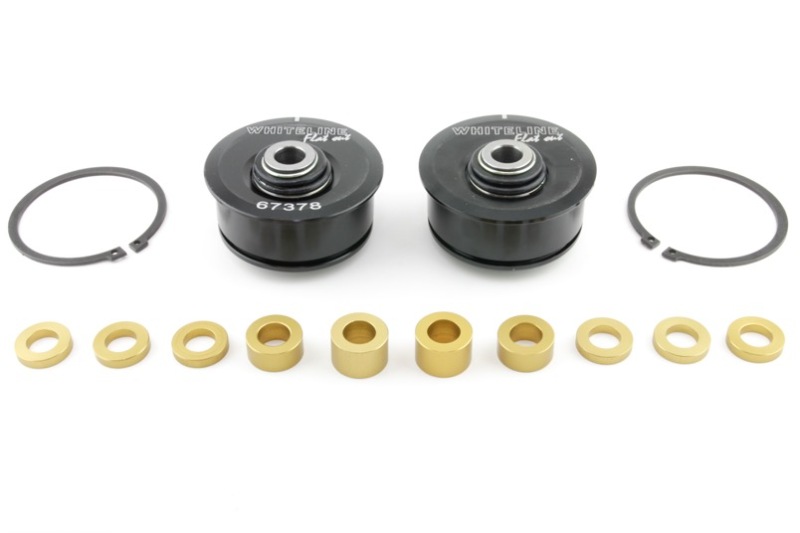

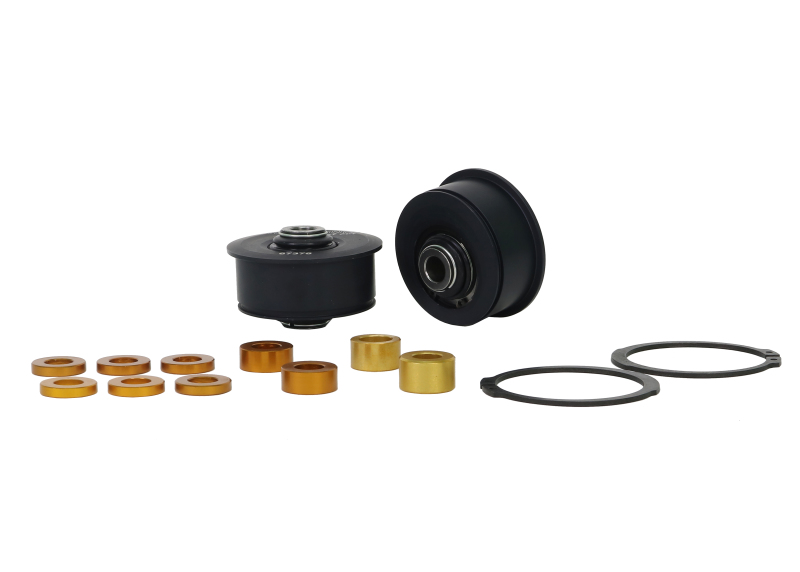

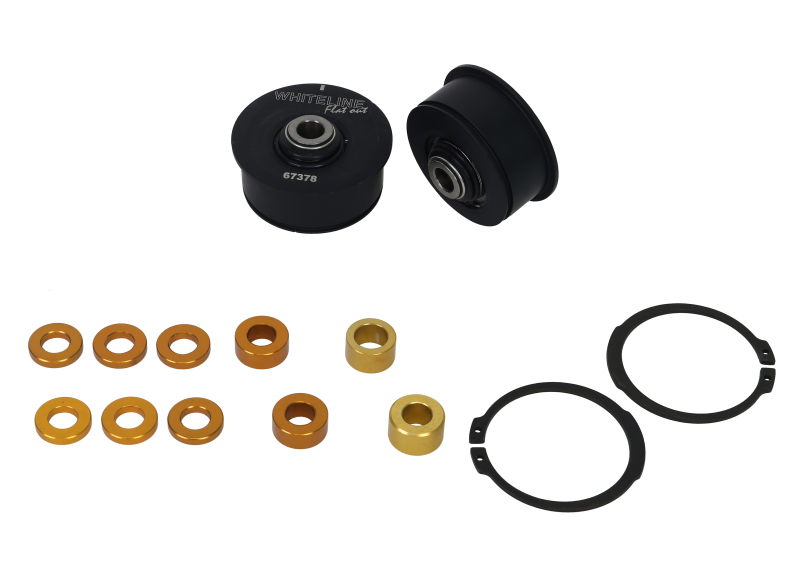

Whiteline’s ‘MOTORSPORT ONLY’ Anti Geometry Kit for 2011 Subaru WRX STI (excludes WRX) replaces the front control arm rear vertically mounted bushing and features lightweight aluminium housing with high performance/low compliance bearings for optimum dynamic alignment under the high rigours of motorsport applications. Positive static caster gains can also be achieved by the offset orientation of the bearing and all motorsport kits come in ‘STEALTH BLACK’. Unique to any Whiteline Anti geometry kit before it, KCA425M allows STI owners to tune geometry from Anti Lift to Anti Dive via a combination of recommended spacers delivering a window of handling behaviour to suit varying track, vehicle set up and driver needs.
Whiteline Control arm – lower inner rear bushing.

Fitment
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Subaru Impreza
2014 Subaru Impreza
2015 Subaru Legacy
2015 Subaru Outback
2015 Subaru WRX
2015 Subaru WRX STI
2016 Subaru Legacy
2016 Subaru Outback
2016 Subaru WRX
2016 Subaru WRX STI
2017 Subaru Legacy
2017 Subaru Outback
2017 Subaru WRX
2017 Subaru WRX STI
2018 Subaru Legacy
2018 Subaru Outback
2018 Subaru WRX
2018 Subaru WRX STI
2019 Subaru Legacy
2019 Subaru Outback
2019 Subaru WRX
2019 Subaru WRX STI
2020 Subaru WRX
2020 Subaru WRX STI
2021 Subaru WRX
2021 Subaru WRX STI
2022 Subaru WRX
2023 Subaru WRX
2024 Subaru WRX
