$272.99
The Edelbrock part #1033 Progressive Linkage Kit is designed to smooth throttle response, eliminate flat spots and improve fuel economy. It achieves this by only opening the center carburetor at less than 50% (or 33%) pedal travel thus sharpening the venturi signal and eliminating the bottom end bog found in traditional multiple carburetor setups that open simultaneously. This kit can also be installed in a non-progressive configuration, if so desired, or can progressively operate a dual two-barrel carburetor configuration.- Due to the need for making fine adjustments and inspections, Edelbrock recommends installing the carburetors and linkage kit prior to installing the manifold on the engine. If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations- Capped rod may require trimming to clear the manifold- If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations- Be sure to always check that the arms will not become inverted after any adjustment. Some trial and error will berequired to achieve a properly balanced set up- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage

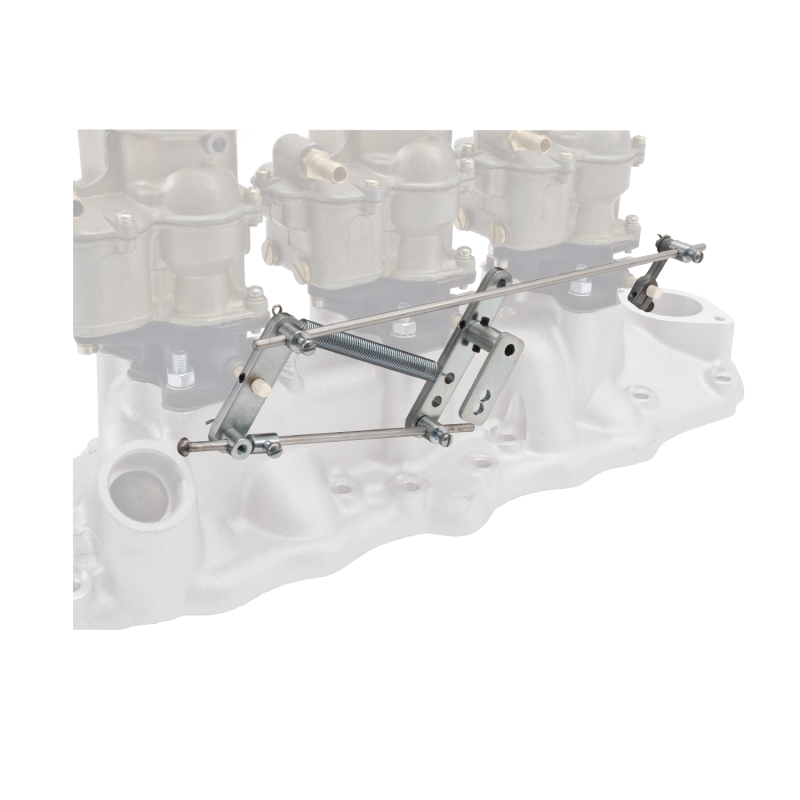

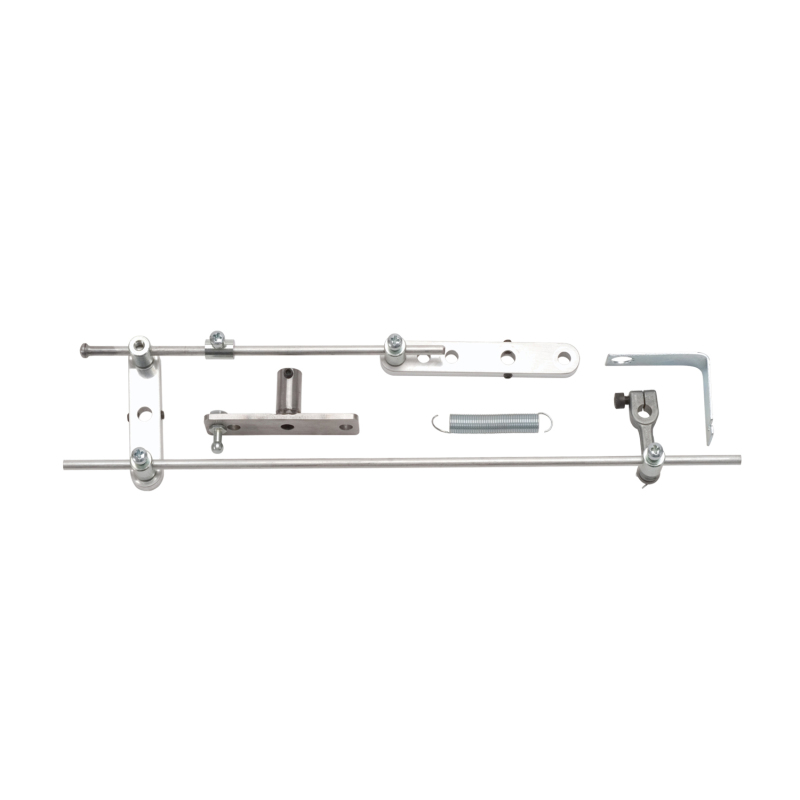

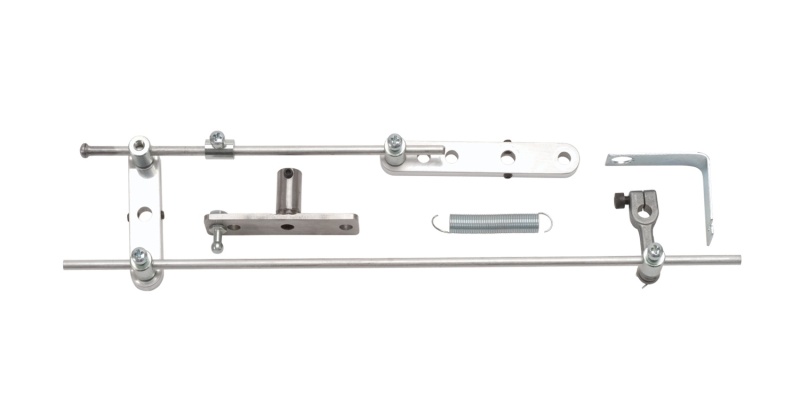

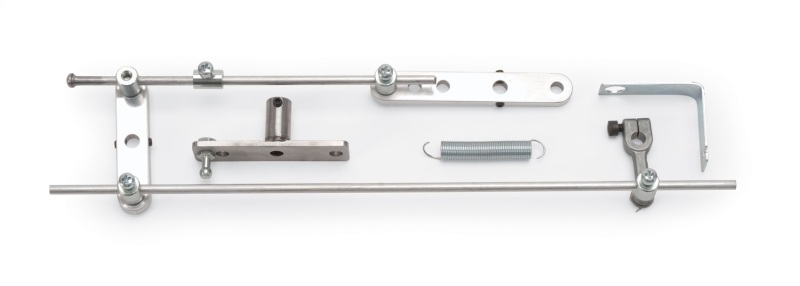

The Edelbrock 1033 throttle linkage kit is an adjustable progressive linkage kit for triple (3) Edelbrock 94 2 bbl carburetors. The kit comes with return spring, bracket and linkage with provision for throttle connection.
Out of stock
The Edelbrock part #1033 Progressive Linkage Kit is designed to smooth throttle response, eliminate flat spots and improve fuel economy. It achieves this by only opening the center carburetor at less than 50% (or 33%) pedal travel thus sharpening the venturi signal and eliminating the bottom end bog found in traditional multiple carburetor setups that open simultaneously. This kit can also be installed in a non-progressive configuration, if so desired, or can progressively operate a dual two-barrel carburetor configuration.- Due to the need for making fine adjustments and inspections, Edelbrock recommends installing the carburetors and linkage kit prior to installing the manifold on the engine. If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations- Capped rod may require trimming to clear the manifold- If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations- Be sure to always check that the arms will not become inverted after any adjustment. Some trial and error will berequired to achieve a properly balanced set up- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage
The Edelbrock 1033 throttle linkage kit is an adjustable progressive linkage kit for triple (3) Edelbrock 94 2 bbl carburetors. The kit comes with return spring, bracket and linkage with provision for throttle connection.
Fitment
1980 Avanti II
1980 Buick Century
1980 Buick Regal
1980 Checker Marathon
1980 Chevrolet C10
1980 Chevrolet C10 Suburban
1980 Chevrolet C20
1980 Chevrolet C20 Suburban
1980 Chevrolet C30
1980 Chevrolet Camaro
1980 Chevrolet Caprice
1980 Chevrolet Corvette
1980 Chevrolet El Camino
1980 Chevrolet G10
1980 Chevrolet G20
1980 Chevrolet G30
1980 Chevrolet Impala
1980 Chevrolet K10
1980 Chevrolet K10 Suburban
1980 Chevrolet K20
1980 Chevrolet K20 Suburban
1980 Chevrolet K30
1980 Chevrolet K5 Blazer
1980 Chevrolet Malibu
1980 Chevrolet Monte Carlo
1980 GMC C1500
1980 GMC C1500 Suburban
1980 GMC C2500
1980 GMC C2500 Suburban
1980 GMC C3500
1980 GMC Caballero
1980 GMC G1500
1980 GMC G2500
1980 GMC G3500
1980 GMC Jimmy
1980 GMC K1500
1980 GMC K1500 Suburban
1980 GMC K2500
1980 GMC K2500 Suburban
1980 GMC K3500
1980 Oldsmobile Cutlass
1980 Oldsmobile Cutlass Calais
1980 Oldsmobile Cutlass Cruiser
1980 Oldsmobile Cutlass Salon
1980 Oldsmobile Cutlass Supreme
1980 Pontiac Firebird
1980 Pontiac Grand Am
1980 Pontiac Grand LeMans
1980 Pontiac Grand Prix
1980 Pontiac LeMans
1981 Avanti II
1981 Checker Marathon
1981 Chevrolet C10
1981 Chevrolet C10 Suburban
1981 Chevrolet C20
1981 Chevrolet C20 Suburban
1981 Chevrolet C30
1981 Chevrolet Camaro
1981 Chevrolet Caprice
1981 Chevrolet Corvette
1981 Chevrolet El Camino
1981 Chevrolet G10
1981 Chevrolet G20
1981 Chevrolet G30
1981 Chevrolet Impala
1981 Chevrolet K10
1981 Chevrolet K10 Suburban
1981 Chevrolet K20
1981 Chevrolet K20 Suburban
1981 Chevrolet K30
1981 Chevrolet K5 Blazer
1981 Chevrolet Malibu
1981 Chevrolet Monte Carlo
1981 GMC C1500
1981 GMC C1500 Suburban
1981 GMC C2500
1981 GMC C2500 Suburban
1981 GMC C3500
1981 GMC Caballero
1981 GMC G1500
1981 GMC G2500
1981 GMC G3500
1981 GMC Jimmy
1981 GMC K1500
1981 GMC K1500 Suburban
1981 GMC K2500
1981 GMC K2500 Suburban
1981 GMC K3500
1981 Pontiac Firebird
1982 Avanti II
1982 Checker Marathon
1982 Chevrolet C10
1982 Chevrolet C10 Suburban
1982 Chevrolet C20
1982 Chevrolet C20 Suburban
1982 Chevrolet C30
1982 Chevrolet Camaro
1982 Chevrolet Caprice
1982 Chevrolet Corvette
1982 Chevrolet El Camino
1982 Chevrolet G10
1982 Chevrolet G20
1982 Chevrolet G30
1982 Chevrolet Impala
1982 Chevrolet K10
1982 Chevrolet K10 Suburban
1982 Chevrolet K20
1982 Chevrolet K20 Suburban
1982 Chevrolet K30
1982 Chevrolet K5 Blazer
1982 Chevrolet Malibu
1982 Chevrolet Monte Carlo
1982 GMC C1500
1982 GMC C1500 Suburban
1982 GMC C2500
1982 GMC C2500 Suburban
1982 GMC C3500
1982 GMC Caballero
1982 GMC G1500
1982 GMC G2500
1982 GMC G3500
1982 GMC Jimmy
1982 GMC K1500
1982 GMC K1500 Suburban
1982 GMC K2500
1982 GMC K2500 Suburban
1982 GMC K3500
1982 Oldsmobile Cutlass Cruiser
1982 Pontiac Firebird
1983 Avanti II
1983 Chevrolet C10
1983 Chevrolet C10 Suburban
1983 Chevrolet C20
1983 Chevrolet C20 Suburban
1983 Chevrolet C30
1983 Chevrolet Camaro
1983 Chevrolet Caprice
1983 Chevrolet El Camino
1983 Chevrolet G10
1983 Chevrolet G20
1983 Chevrolet G30
1983 Chevrolet Impala
1983 Chevrolet K10
1983 Chevrolet K10 Suburban
1983 Chevrolet K20
1983 Chevrolet K20 Suburban
1983 Chevrolet K30
1983 Chevrolet K5 Blazer
1983 Chevrolet Malibu
1983 Chevrolet Monte Carlo
1983 Excalibur Phaeton
1983 GMC C1500
1983 GMC C1500 Suburban
1983 GMC C2500
1983 GMC C2500 Suburban
1983 GMC C3500
1983 GMC Caballero
1983 GMC G1500
1983 GMC G2500
1983 GMC G3500
1983 GMC Jimmy
1983 GMC K1500
1983 GMC K1500 Suburban
1983 GMC K2500
1983 GMC K2500 Suburban
1983 GMC K3500
1983 Pontiac Bonneville
1983 Pontiac Firebird
1983 Pontiac Grand Prix
1983 Pontiac Parisienne
1984 Avanti II
1984 Chevrolet C10
1984 Chevrolet C10 Suburban
1984 Chevrolet C20
1984 Chevrolet C20 Suburban
1984 Chevrolet C30
1984 Chevrolet Camaro
1984 Chevrolet Caprice
1984 Chevrolet Corvette
1984 Chevrolet El Camino
1984 Chevrolet G10
1984 Chevrolet G20
1984 Chevrolet G30
1984 Chevrolet Impala
1984 Chevrolet K10
1984 Chevrolet K10 Suburban
1984 Chevrolet K20
1984 Chevrolet K20 Suburban
1984 Chevrolet K30
1984 Chevrolet K5 Blazer
1984 Chevrolet Monte Carlo
1984 Excalibur Phaeton
1984 GMC C1500
1984 GMC C1500 Suburban
1984 GMC C2500
1984 GMC C2500 Suburban
1984 GMC C3500
1984 GMC Caballero
1984 GMC G1500
1984 GMC G2500
1984 GMC G3500
1984 GMC Jimmy
1984 GMC K1500
1984 GMC K1500 Suburban
1984 GMC K2500
1984 GMC K2500 Suburban
1984 GMC K3500
1984 Pontiac Bonneville
1984 Pontiac Firebird
1984 Pontiac Grand Prix
1984 Pontiac Parisienne
1985 Avanti II
1985 Chevrolet C10
1985 Chevrolet C10 Suburban
1985 Chevrolet C20
1985 Chevrolet C20 Suburban
1985 Chevrolet C30
1985 Chevrolet Camaro
1985 Chevrolet Caprice
1985 Chevrolet Corvette
1985 Chevrolet El Camino
1985 Chevrolet G10
1985 Chevrolet G20
1985 Chevrolet G30
1985 Chevrolet Impala
1985 Chevrolet K10
1985 Chevrolet K10 Suburban
1985 Chevrolet K20
1985 Chevrolet K20 Suburban
1985 Chevrolet K30
1985 Chevrolet K5 Blazer
1985 Chevrolet Monte Carlo
1985 Excalibur Phaeton
1985 GMC C1500
1985 GMC C1500 Suburban
1985 GMC C2500
1985 GMC C2500 Suburban
1985 GMC C3500
1985 GMC Caballero
1985 GMC G1500
1985 GMC G2500
1985 GMC G3500
1985 GMC Jimmy
1985 GMC K1500
1985 GMC K1500 Suburban
1985 GMC K2500
1985 GMC K2500 Suburban
1985 GMC K3500
1985 Pontiac Bonneville
1985 Pontiac Firebird
1985 Pontiac Grand Prix
1985 Pontiac Parisienne
1986 Chevrolet C10
1986 Chevrolet C10 Suburban
1986 Chevrolet C20
1986 Chevrolet C20 Suburban
1986 Chevrolet C30
1986 Chevrolet Camaro
1986 Chevrolet Caprice
1986 Chevrolet Corvette
1986 Chevrolet El Camino
1986 Chevrolet G10
1986 Chevrolet G20
1986 Chevrolet G30
1986 Chevrolet K10
1986 Chevrolet K10 Suburban
1986 Chevrolet K20
1986 Chevrolet K20 Suburban
1986 Chevrolet K30
1986 Chevrolet K5 Blazer
1986 Chevrolet Monte Carlo
1986 Excalibur Phaeton
1986 GMC C1500
1986 GMC C1500 Suburban
1986 GMC C2500
1986 GMC C2500 Suburban
1986 GMC C3500
1986 GMC Caballero
1986 GMC G1500
1986 GMC G2500
1986 GMC G3500
1986 GMC Jimmy
1986 GMC K1500
1986 GMC K1500 Suburban
1986 GMC K2500
1986 GMC K2500 Suburban
1986 GMC K3500
1986 Pontiac Bonneville
1986 Pontiac Firebird
1986 Pontiac Grand Prix
1986 Pontiac Parisienne
1987 Avanti II
1987 Excalibur Phaeton
1987 GMC G3500
1988 Avanti II
1988 Excalibur Phaeton
1988 GMC G3500
1989 Avanti II
1989 Excalibur Phaeton
1990 Avanti II
1991 Avanti II
1991 Buick Commercial Chassis
1991 Buick Roadmaster
1992 Buick Commercial Chassis
1992 Buick Roadmaster
1993 Buick Commercial Chassis
1993 Buick Roadmaster
