Audi/VW 1.8T 20V Upgraded Performance AEB Cylinder Head – Big Turbo Setup -SuperTech SPRK-AUDI18T-DR , Brian Cower, Ferrea, INA, MAHLE, IE Performance

This 1.8T AEB Performance Cylinder Head from Untd. Performance is engineered to elevate your Audi or VW’s engine capabilities, supporting higher levels of boost, more aggressive cam profiles, and greater performance under pressure. Built with premium valvetrain components and precision-machined for maximum stability, these upgraded heads are capable of revving up to 9,000 RPM and can easily handle the 800+ horsepower range, making them ideal for extreme street builds and dedicated race applications.

Untd. Performance has taken the guesswork out of upgrading your engine. Each cylinder head is teared down, meticulously cleaned, and ported to optimize airflow and combustion efficiency. From there, it’s machined to exact specifications before being reassembled with a selection of premium components designed for high-performance applications. The result is an upgrade that enhances your engine’s power output while ensuring longevity under high-stress conditions.

Key Features & Upgrades:

• Comprehensive Rebuild: Every head is carefully disassembled, cleaned, and inspected to ensure it meets the highest standards. Once disassembled, it undergoes extensive slight porting and machining to increase airflow and optimize combustion efficiency. Afterward, the head is reassembled using only the best components available for optimal performance.

• OEM INA Lifters & Chain Tensioner: To maintain the reliability and smooth operation of the valvetrain, this head includes new OEM lifters and a chain tensioner. These OEM parts ensure proper camshaft timing and smooth engine operation under high-performance loads.

• Supertech Valve Guides & Seals: Upgraded Standard Size 6mm Supertech valve guides and valve seals offer increased durability and precision, helping to maintain consistent performance and compression even under the most extreme conditions. These components ensure the valves stay in place and operate with minimal friction, reducing wear and tear over time.

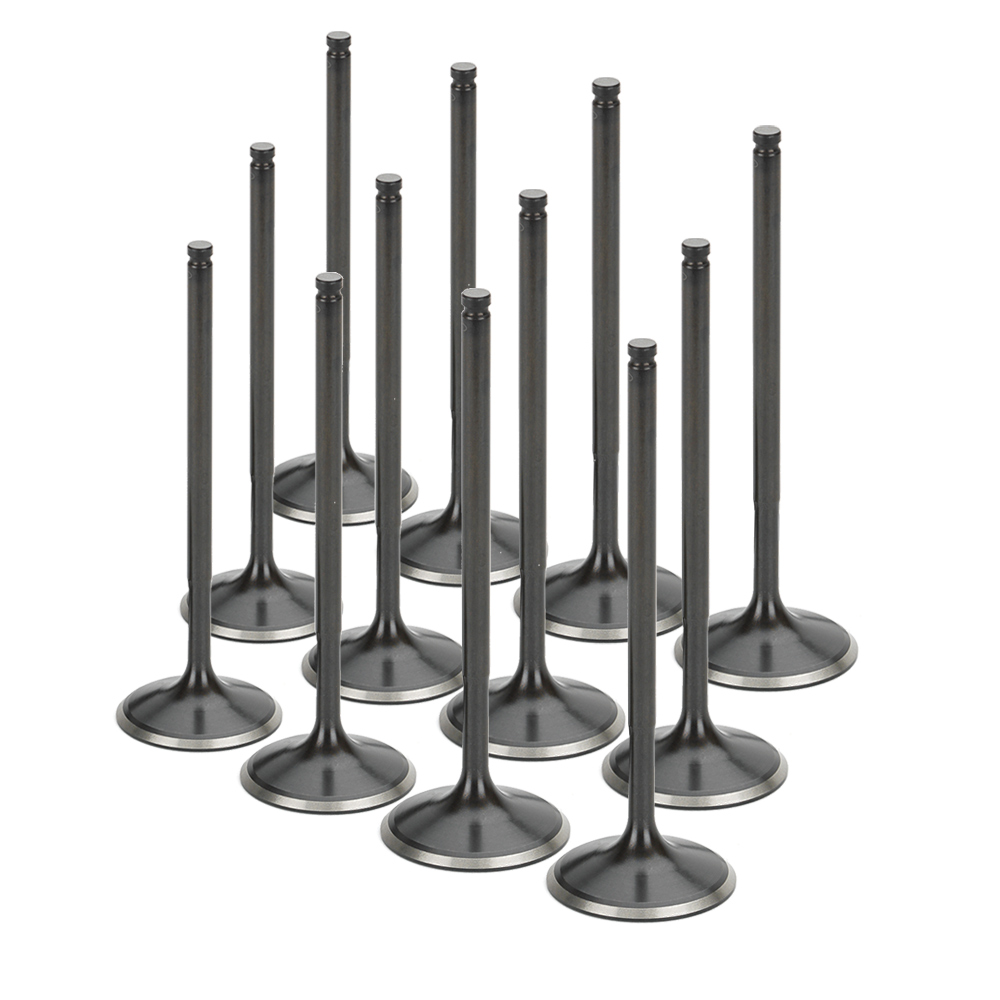

• Upgraded Single Groove Intake & Exhaust Valves &  Springs Kit SPRK-AUDI18T-DR : The heart of any performance cylinder head is its ability to manage airflow efficiently. This head comes with a complete intake and exhaust valves and valve springs kit, designed to handle the demands of higher boost pressures and more aggressive camshaft profiles. These high-performance valves ensure your engine can breathe easier and more efficiently, resulting in enhanced power and throttle response.

• Camshaft Selection: To give you the flexibility to tailor the performance characteristics to your needs, you can choose between several camshaft options:

  • OEM Camshaft for reliable, everyday performance.

  • SPA Turbo 252/260 Camshafts for improved power delivery at higher RPMs, perfect for enthusiasts looking for an aggressive edge.

  • Brian Crower 252/260 Camshafts for those aiming for maximum performance with increased lift and duration, ideal for aggressive builds.

• IE Performance Cam Gear: Fine-tune your engine’s timing with the included IE Performance cam gear, which allows for precise adjustments to camshaft timing, giving you more control over how the engine breathes at different RPM ranges. This is essential for maximizing power output and tuning the engine for specific performance goals.

• New Valve Cover Gasket Included: To ensure a perfect seal and prevent leaks during installation, a new valve cover gasket is provided, making the upgrade as straightforward and hassle-free as possible.

• Optional Customizable Valve Cover: Want to personalize the look of your engine bay? The customizable valve cover option lets you give your engine a unique appearance while maintaining functionality. Choose from a range of finishes and designs to make your build truly one of a kind.

This 1.8T AEB Performance Cylinder Head from Untd. Performance is engineered to elevate your Audi or VW’s engine capabilities, supporting higher levels of boost, more aggressive cam profiles, and greater performance under pressure. Whether you’re looking to set new records at the track or simply want to experience more power on the road, this head is the perfect foundation for your high-performance build.

With all components carefully selected to offer the ideal balance of reliability and performance, this upgraded cylinder head is a must-have for anyone serious about taking their 1.8T engine to the next level. Choose the 1.8T AEB Upgraded Performance Head and experience the difference in power, reliability, and driving excitement.

ALL OEM PARTS (CAMSHAFTS, SPRINGS, KEEPERS) ARE INCLUDED IN EVERY HEAD SHIPPED

PART NUMBER LIST :

• SPA Turbo 252/260 Intake & Exhaust Camshafts : EVCVSW11
• Brian Cower 252/260 Intake & Exhaust Camshafts : BC0702
• INA Intake Lifters : 058109309J
• INA Exhaust Lifters : 058109309E
• VVT ( Variable Valve Timing) : 058109088K
• SuperTech Dual Valves Spring Kit : SPRK-AUDI18T-DR
• SuperTech STD Black Nitride SS Exhaust Valves : AEVN-1103-8
• SuperTech STD Intake Valves : AIVN-1103S-12
• SuperTech STD Single Groove Keepers : KPR-6S-7-20
• SuperTech STD Guides : GDE-AU18T
• ARP Head Studs 06A Kit W/O Tool : 204-4103
• IE Billet Adjustable Ultimate Cam Gear Kit 06A : IEVTVA8

CONTACT US IF YOU WISH TO HAVE ANY OTHER SETUP OTHER THEN THIS ONE
