$738.99

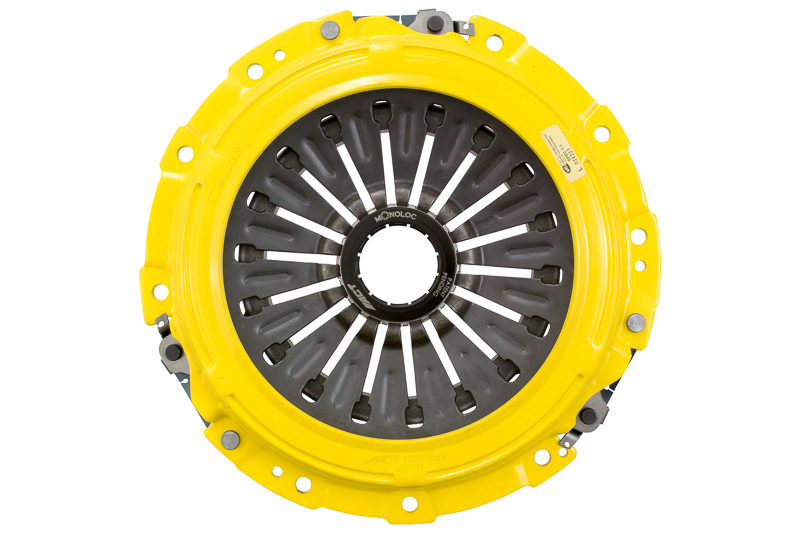

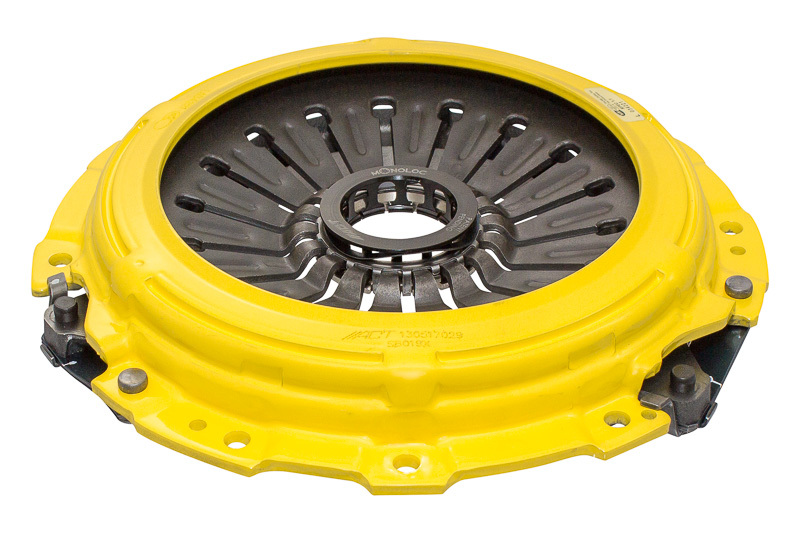

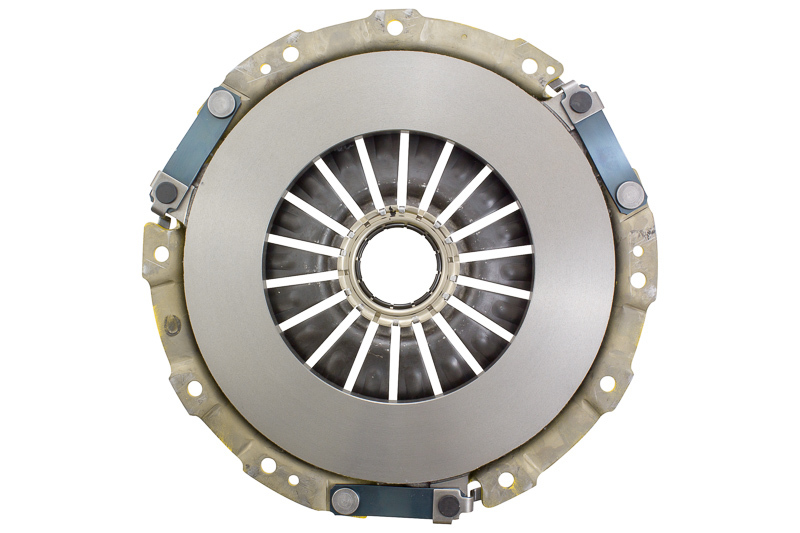

SB019X is an ACT pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc’s hardened chrome-moly steel construction will provide years of service.
Xtreme Pressure Plate
Moderate to heavy pedal effort, confidence during hard shifts, positive engagement; Available life extended by ACT’s exclusive diaphragm design, dramatic improvement in release mechanism life; Carefully engineered for improved durability, precisely assembled, accurately balanced, major improvement in release mechanism; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT’s patented Monoloc
SB019X is an ACT pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc’s hardened chrome-moly steel construction will provide years of service.
Xtreme Pressure Plate
Moderate to heavy pedal effort, confidence during hard shifts, positive engagement; Available life extended by ACT’s exclusive diaphragm design, dramatic improvement in release mechanism life; Carefully engineered for improved durability, precisely assembled, accurately balanced, major improvement in release mechanism; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT’s patented Monoloc
Fitment
2004 Subaru Impreza
2005 Subaru Impreza
2006 Subaru Impreza
2007 Subaru Impreza
2007 Subaru Legacy
2008 Subaru Impreza
2008 Subaru Legacy
2009 Subaru Impreza
2009 Subaru Legacy
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Subaru Impreza
2014 Subaru Impreza
2015 Subaru WRX STI
2016 Subaru WRX STI
2017 Subaru WRX STI
2018 Subaru WRX STI
2019 Subaru WRX STI
2020 Subaru WRX STI
2021 Subaru WRX STI
